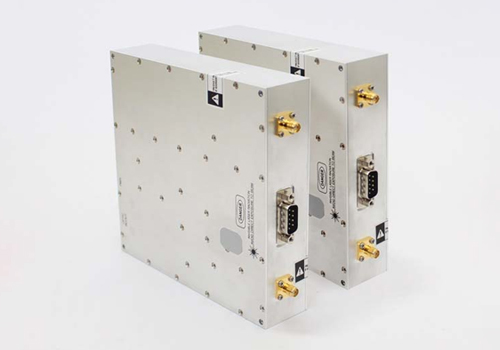

Broadband & Jamming Amplifier

Product Overview

Our high-power amplifiers are engineered to deliver clean, controllable RF output from modest input levels, emphasizing efficiency, linearity, and long-term stability.

ALC and gain control help you hold target levels under varying conditions, while built-in protection safeguards both the amplifier and connected equipment.

With serial control, rugged construction, and flexible configuration, these units integrate smoothly into new or existing platforms. Choose from proven standard options or collaborate with our engineers on a custom design matched to your band, output goals, and environmental requirements.

Key Features

  • Extremely cost competitive purchase price
  • Various range frequency covering
  • Wide range power output from low to high
  • Isolator protected output
  • Wide Temperature range
  • Field Proven reliability
  • Smaller size Rugged design
  • Several Standard Options available as well as Custom Design

Applications

  • TERA/GSM/DCS/UMTS/WCDMA/LTE/5G System
  • RF Repeater
  • DAS (Distributed Antenna System)
  • RRH (Remote Radio Head)
  • Amplifier for Digital Television
Part Number Freq Start (MHz) Freq Stop (MHz) Output Power (dBm) Gain (dB) Size (mm) Datasheet
EBM-0020M0500-50-53 20 50 50 53 187*91*28
EBM-0500M1000-47-46 500 1000 47 30 180*90*28
EBM-0500M1000-50-53 500 1000 50 53 187*91*28
EBM-0500M2500-47-50 500 2500 47 50 187*91*28
EBM-0850M1650-50-46 850 1650 50 56 270*130*28
EBM-1000M2000-47-46 1000 2000 47 30 180*90*28
EBM-2000M4000-47-46 2000 4000 47 30 180*90*28
EBM-2200M2700-50-46 2200 2700 50 56 270*130*28
EBM-2500M6000-45-48 2500 6000 45 48 187*91*28
EBM-4000M6000-47-46 4000 6000 47 30 180*90*28
EBM-5000M6000-47-46 5000 6000 47 53 248*130*28
EBM-5000M6000-49-46 5000 6000 49 55 330*180*28
EJM-0433-49-48 433 435 49 48 180*115*28
EJM-0902-49-48 902 928 49 48 180*115*28
EJM-1164-49-48 1164 1300 49 48 180*115*28
EJM-1164-57-46 1164 1300 500 60 280*200*28
EJM-1559-49-48 1559 1610 49 48 180*115*28
EJM-1559-57-46 1559 1610 500 60 280*200*28
EJM-2400-49-48 2400 2484 49 48 180*115*28
EJM-3300-53-53 3300 3800 53 53 250*180*32
EJM-5650-48-48 5650 5850 48 48 180*115*28
