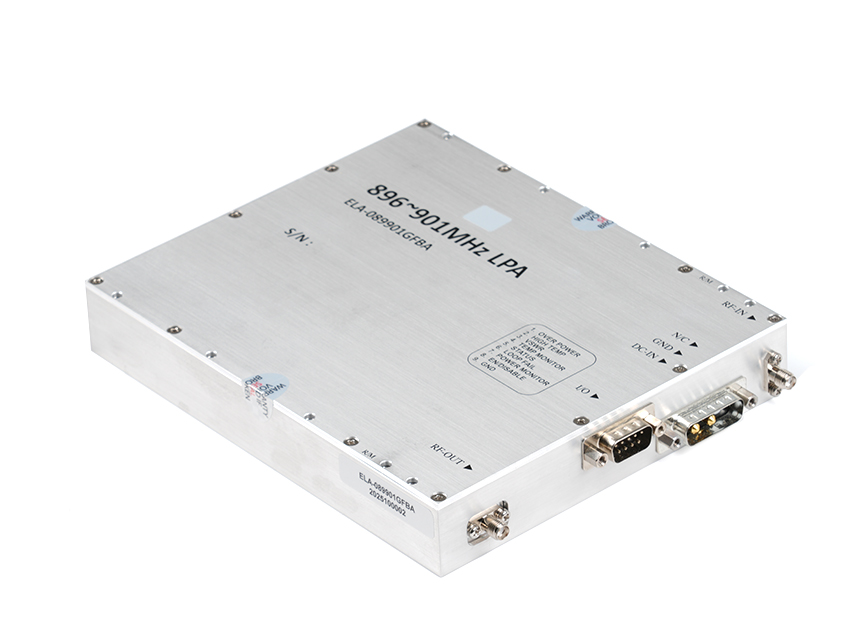

Linear Power Amplifier

Product Overview

Our high-power amplifiers are engineered to deliver clean, controllable RF output from modest input levels, emphasizing efficiency, linearity, and long-term stability.

ALC and gain control help you hold target levels under varying conditions, while built-in protection safeguards both the amplifier and connected equipment.

With serial control, rugged construction, and flexible configuration, these units integrate smoothly into new or existing platforms. Choose from proven standard options or collaborate with our engineers on a custom design matched to your band, output goals, and environmental requirements.

Key Features

  • Extremely cost competitive purchase price
  • Various range frequency covering
  • Wide range power output from low to high
  • Isolator protected output
  • Wide Temperature range
  • Field Proven reliability
  • Smaller size Rugged design
  • Several Standard Options available as well as Custom Design

Applications

  • TERA/GSM/DCS/UMTS/WCDMA/LTE/5G System
  • RF Repeater
  • DAS (Distributed Antenna System)
  • RRH (Remote Radio Head)
  • Amplifier for Digital Television
Part Number Freq Start (MHz) Freq Stop (MHz) Output Power (dBm) Gain (dB) Size (mm) Datasheet
ELM-0380-38-45-B 380 420 38 45 180*150*28
ELM-0380-38-45 380 400 38 45 180*150*28
ELM-0380-39-40 380 400 39 40 180*150*28
ELM-0390-33-45 390 460 33 45 150*180*28
ELM-0390-38-45-B 390 410 38 45 180*150*28
ELM-0390-38-45 390 410 38 45 180*150*28
ELM-0410-38-45 410 430 38 45 180*150*28
ELM-0450-38-45 450 470 38 45 180*150*28
ELM-0450-46-45 450 470 46 45 150*180*28
ELM-0465-38-45 465 485 38 45 180*150*28
ELM-0490-38-45 490 512 38 45 180*150*28
ELM-0769-38-45 769 775 38 45 180*150*28
ELM-0799-38-45 799 824 38 45 180*150*28
ELM-0851-38-45 851 869 38 45 180*150*28
ELM-0920-38-45 920 960 38 45 180*150*28
ELM-0925-43-54 925 960 43 54 180*150*28
ELM-1805-40-54 1805 1880 40 54 180*150*28
