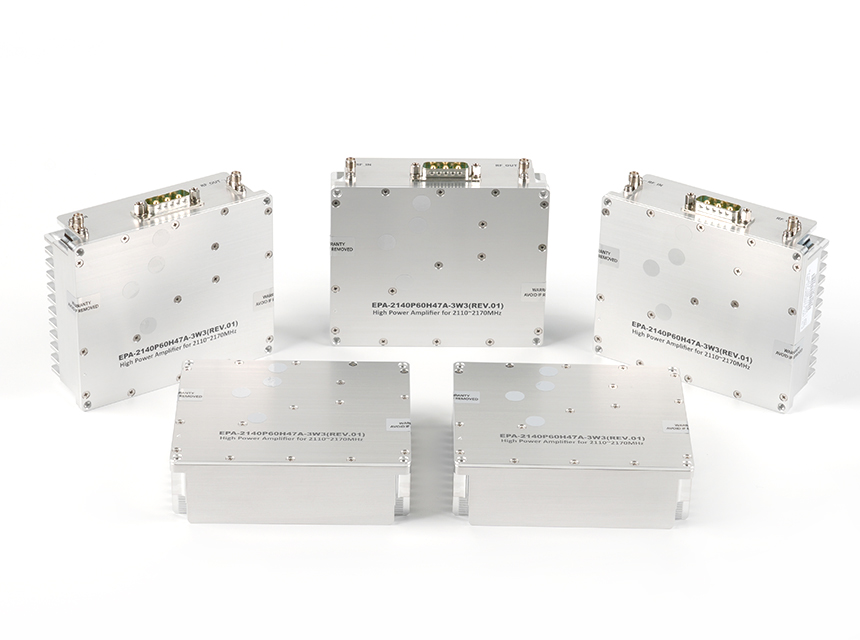

High Power Amplifier

Product Overview

Our high-power amplifiers are engineered to deliver clean, controllable RF output from modest input levels, emphasizing efficiency, linearity, and long-term stability.

ALC and gain control help you hold target levels under varying conditions, while built-in protection safeguards both the amplifier and connected equipment.

With serial control, rugged construction, and flexible configuration, these units integrate smoothly into new or existing platforms. Choose from proven standard options or collaborate with our engineers on a custom design matched to your band, output goals, and environmental requirements.

Key Features

  • Extremely cost competitive purchase price
  • Various range frequency covering
  • Wide range power output from low to high
  • Isolator protected output
  • Wide Temperature range
  • Field Proven reliability
  • Smaller size Rugged design
  • Several Standard Options available as well as Custom Design

Applications

  • TERA/GSM/DCS/UMTS/WCDMA/LTE/5G System
  • RF Repeater
  • DAS (Distributed Antenna System)
  • RRH (Remote Radio Head)
  • Amplifier for Digital Television
Part Number Freq Start (MHz) Freq Stop (MHz) Output Power (dBm) Gain (dB) Size (mm) Datasheet
EHM-0400-49-48 400 470 80 45 203.2*101.6*25.4
EHM-0415-49-48 415 460 80 45 203.2*101.6*25.4
EHM-0420-42-38 420 440 48 45 180*80*28
EHM-0420-51-51 420 500 51 51 170*120*25
EHM-0698-63-63-PLS 698 960 63 63 483*221.5*550
EHM-0728-42-47 728 758 42 47 185*120*28
EHM-0728-45-50 728 758 45 50 190*130*28
EHM-0728-48-53 728 758 48 53 190*160*30
EHM-0728-49-46 728 757 49 46 163*86*25
EHM-0758-45-50 758 803 45 50 190*130*28
EHM-0758-48-53 758 803 48 53 190*160*30
EHM-0773-48-53 773 783 48 53 190*160*30
EHM-0791-42-47 791 821 42 47 185*120*28
EHM-0791-45-50 791 821 45 50 190*130*28
EHM-0791-46-50 791 821 46 50 190*140*73
EHM-0850-48-46 850 930 60 45 203.2*101.6*25.4
EHM-0860-42-38 860 928 15 45 180*80*28
EHM-0869-47-50 869 894 47 50 190*160*30
EHM-0869-48-40 869 894 48 40 120*100*37
EHM-0925-33-38 925 960 33 38 120*110*28
EHM-0925-37-42 925 960 37 42 120*110*28
EHM-0925-40-30 925 960 40 30 120*52*22
EHM-0925-42-47 925 960 42 47 185*120*28
EHM-0925-44-50 925 960 44 50 170*205*28
EHM-0925-45-50 925 960 45 50 190*130*28
EHM-0925-46-50 925 960 46 50 190*140*73
EHM-0925-48-40 925 960 48 40 120*100*37
EHM-0960-53-58 960 1215 53 58 233*130*28
EHM-1164-45-46 1164 1300 30 48 180*80*28
EHM-1200-47-46 1200 1600 48 45 203.2*101.6*25.4
EHM-1559-45-46 1559 1610 30 48 180*80*28
EHM-1800-63-63-PLS 1800 2200 63 63 483.221.5*550
EHM-1805-33-38 1805 1880 33 38 110*95*28
EHM-1805-37-42 1805 1880 37 42 120*110*28
EHM-1805-42-38 1805 1880 15 45 180*80*28
EHM-1805-44-50 1805 1885 44 50 170*205*28
EHM-1805-46-50 1805 1880 46 50 190*140*73
EHM-1805-48-40 1805 1880 48 40 120*100*37
EHM-1930-42-47 1930 1990 42 47 185*120*28
EHM-1930-45-50 1930 1990 45 50 190*130*28
EHM-1930-48-53 1930 1990 48 53 190*160*30
EHM-2000-37-40 2000 3000 37 40 170*75*28
EHM-2110-33-38 2110 2170 33 38 110*95*28
EHM-2110-37-42 2110 2170 37 42 120*110*28
EHM-2110-39-42 2110 2170 39 42 100*140*32
EHM-2110-42-38 2110 2170 15 45 180*80*28
EHM-2110-42-47 2110 2170 42 47 185*120*28
EHM-2110-44-50 2110 2170 44 50 170*205*30
EHM-2110-45-50 2110 2170 45 50 190*130*28
EHM-2110-46-50 2110 2170 46 50 190*140*73
EHM-2110-47-40 2110 2170 47 40 120*100*37
EHM-2300-30-35 2300 2400 30 35 110*95*25
EHM-2300-45-45 2300 2400 45 45 200*145*63
EHM-2300-63-63-PLS 2300 2700 63 63 483*221.5*550
EHM-2390-45-46 2390 2500 30 48 180*115*25
EHM-2400-48-46 2400 2500 48 46 203.2*101.6*25.4
EHM-2620-37-42 2620 2690 37 42 150*70*32
EHM-2620-39-42 2620 2690 39 42 100*140*32
EHM-2620-42-47 2620 2690 42 47 185*120*28
EHM-2620-45-50 2620 2690 45 50 190*130*28
EHM-2620-46-50 2620 2690 46 50 190*175*73
EHM-3300-37-40 3300 3800 43 40 223*118.5*26.5
EHM-3300-40-43-PL 3300 3800 40 43 223*118.5*26.5
EHM-3300-40-43 3300 3800 40 43 223*118.5*26.5
EHM-3300-43-46 3300 3800 43 46 223*118.5*26.5
EHM-3400-63-63-PLS 3400 3800 63 63 483*221.5*550
EHM-4400-36-46 4400 5000 36 46 115*100*25
EHM-5100-46-46 5100 6000 47 52 203.2*101.6*25.4
EHM-5150-45-46 5150 5725 30 48 180*115*28
EHM-5725-45-46 5725 5880 30 48 180*115*28
EHM-5920-47-40 5920 7130 47 50 250*90*28
